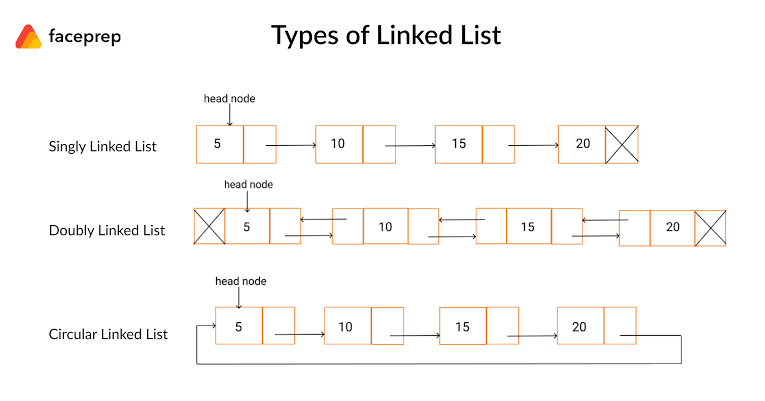

Types of Linked list

• Singly List

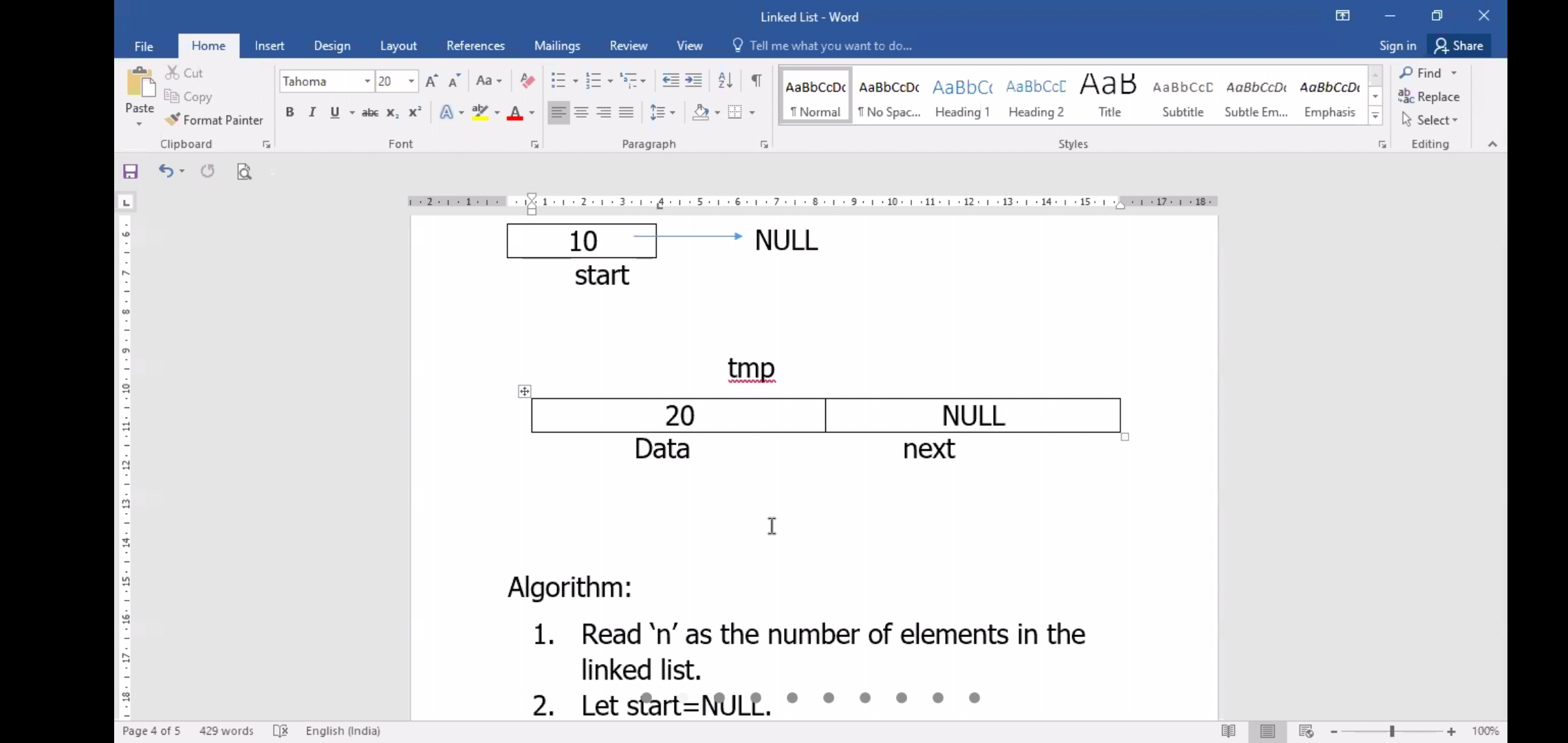

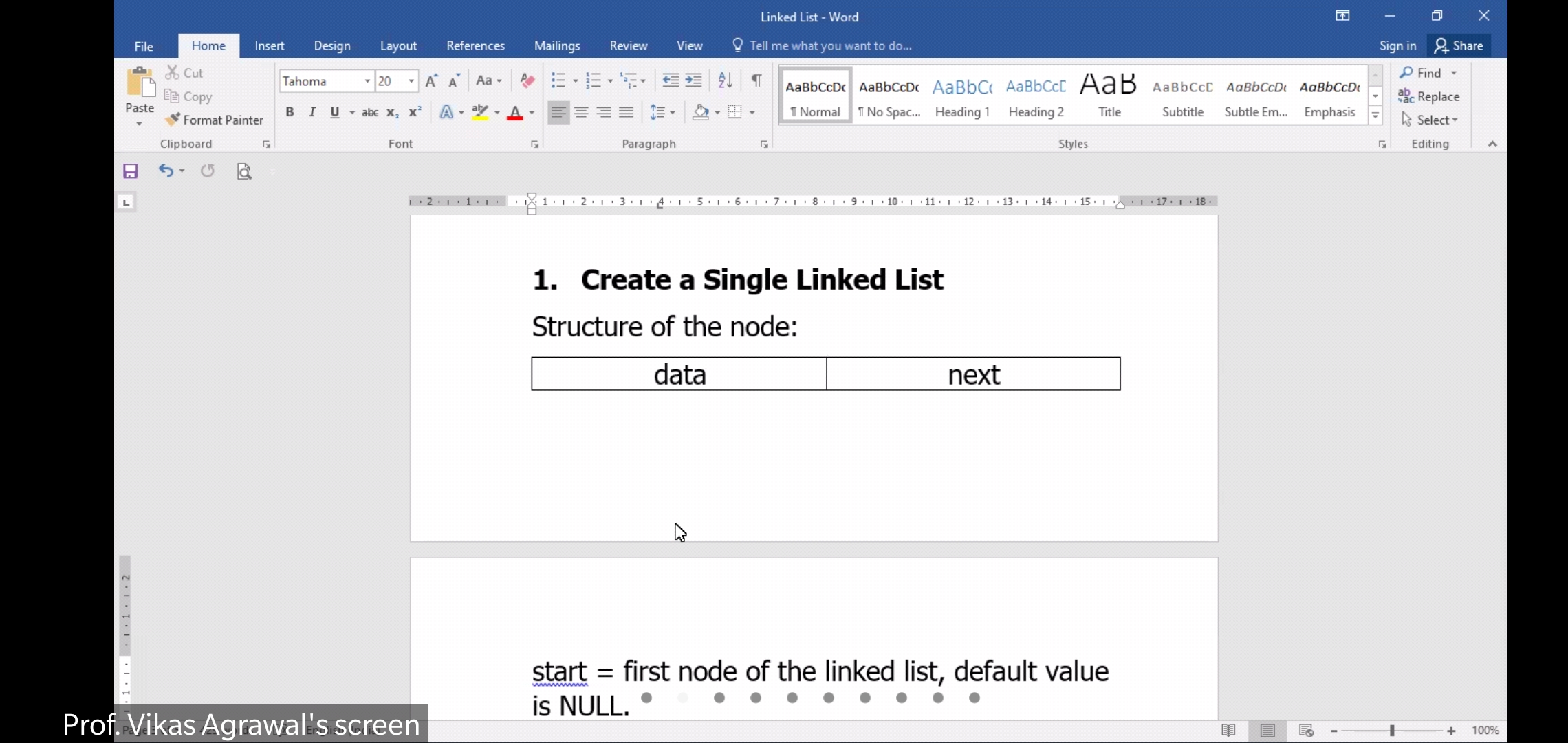

  In a SLL, each element points to its next element. The last element points to a NULL pointer. Each element consists of two fields - data and link. Hence each element is called as a node.

  The first node is indicated by a pointer called "start". SLL allows traversal only in forward direction .

  Links :

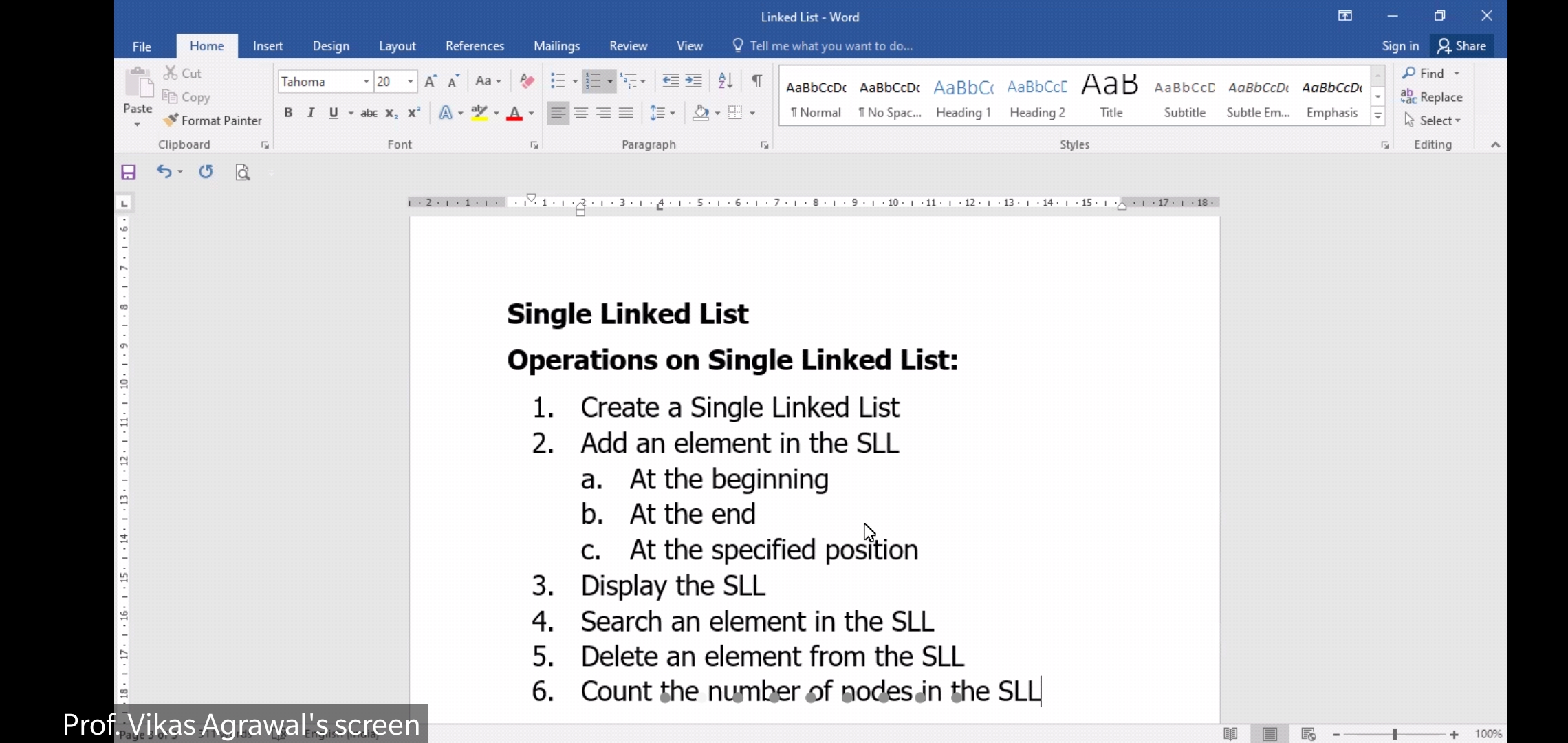

  • Algorithms

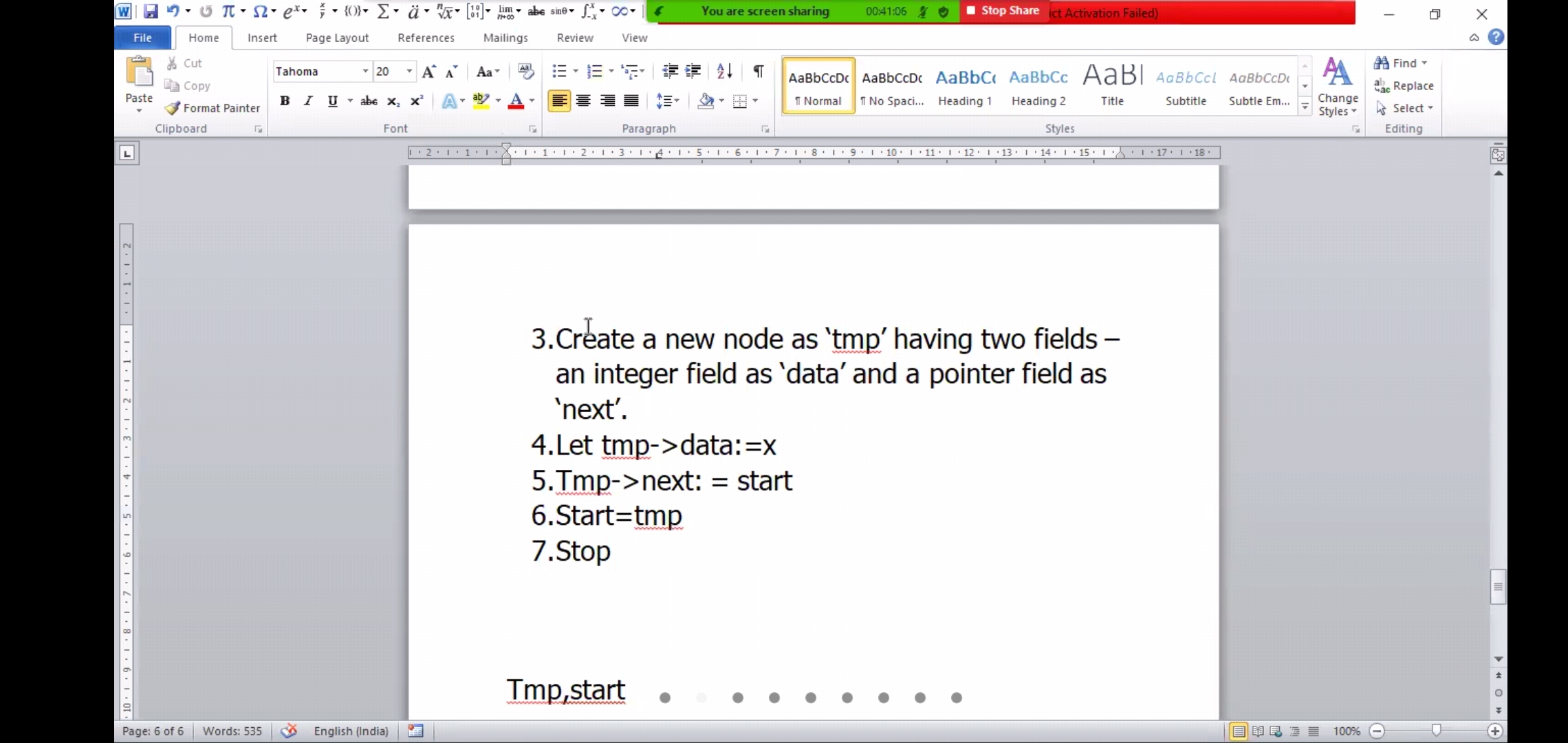

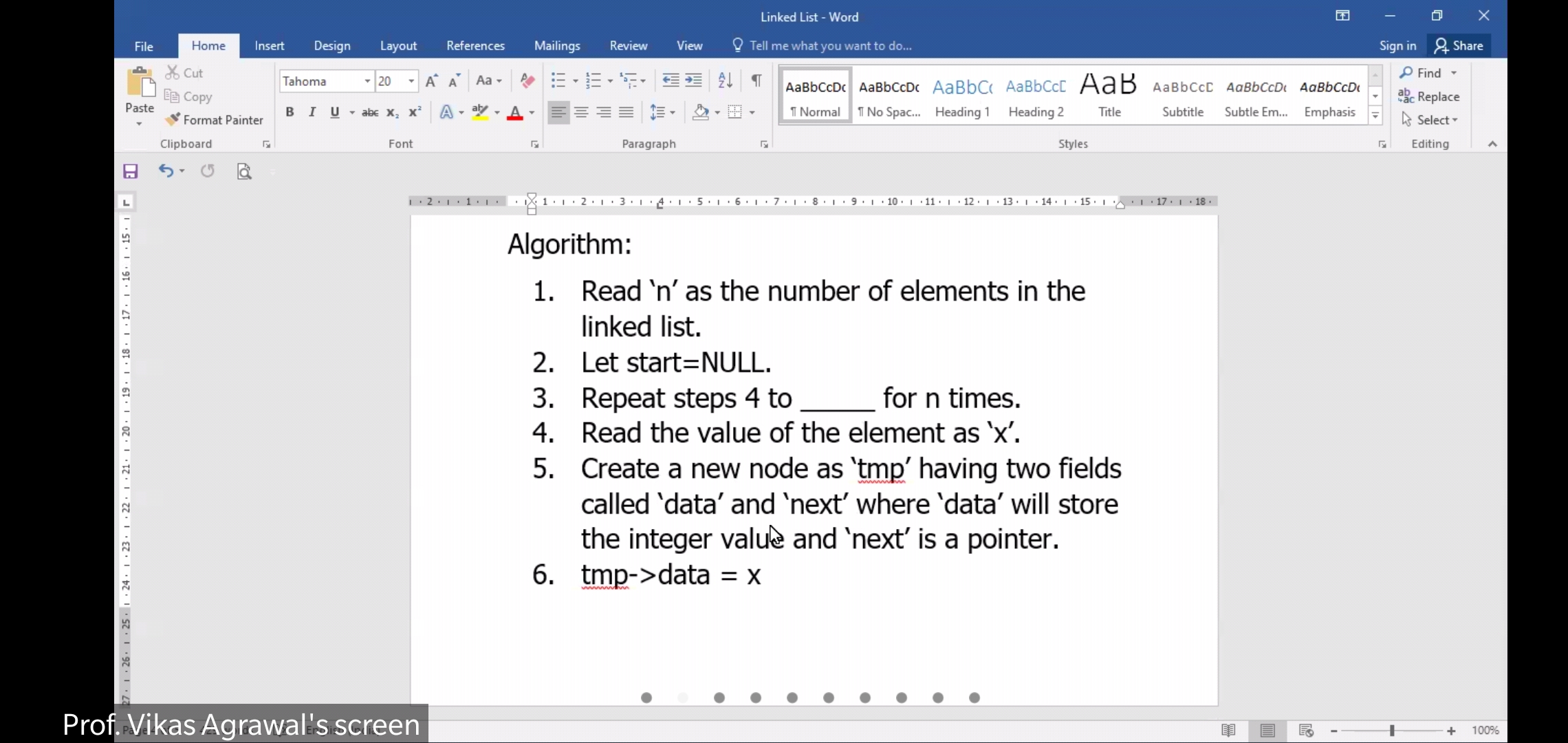

  • Insertion of the new element

  • Inserting at the End

  • Inserting at the specified position

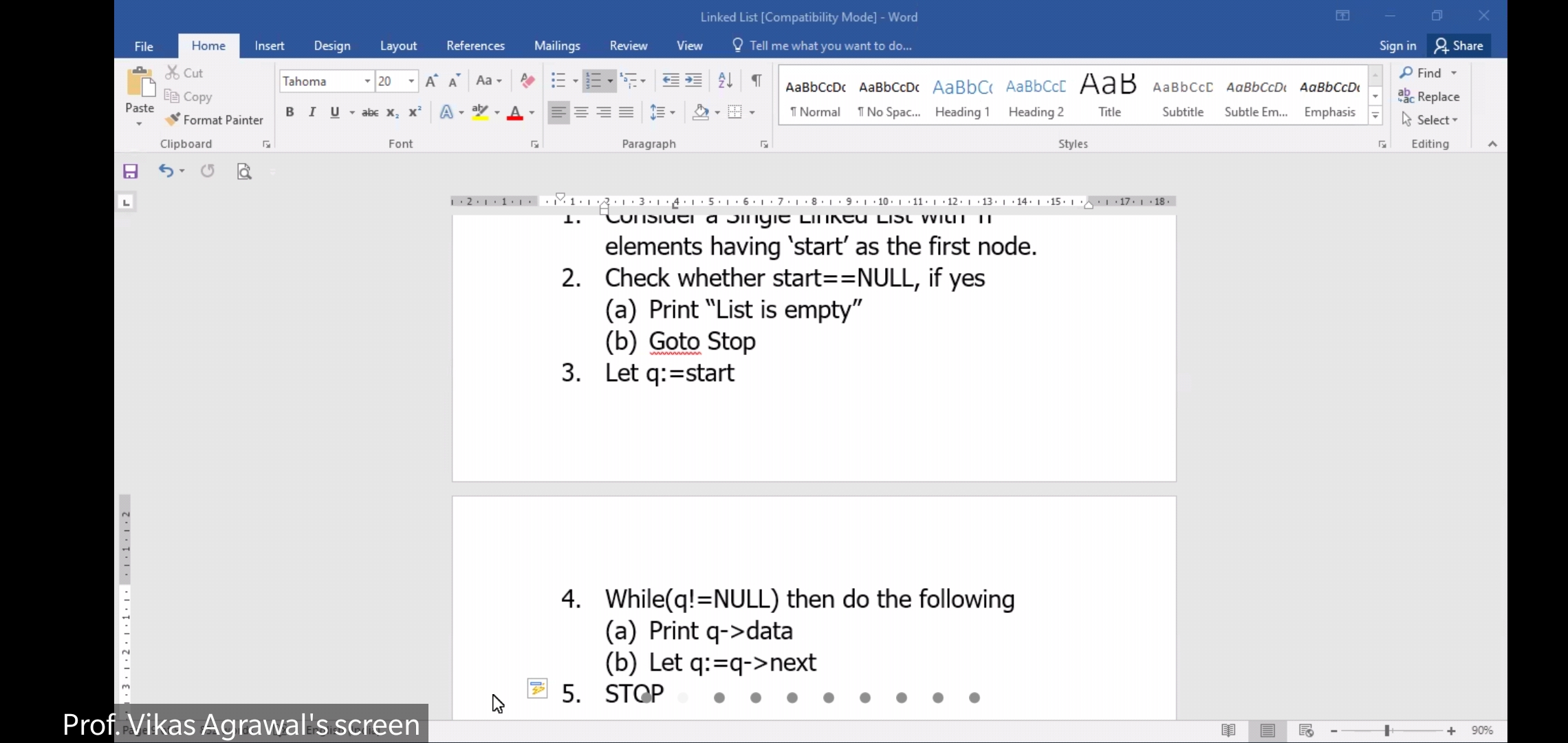

  • Traverse

  • Searching element

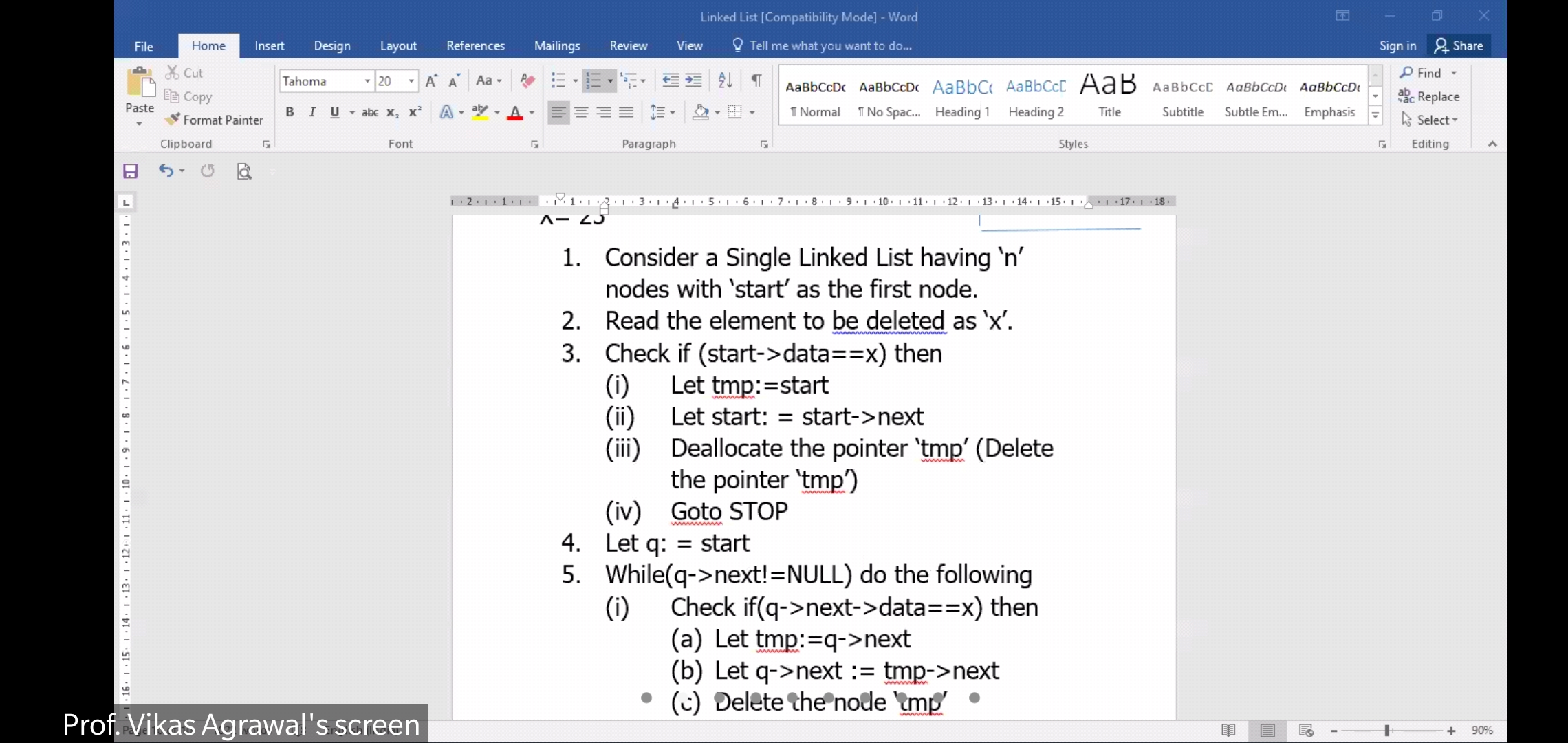

  • Delete perticular element

  • Count the number of elements







  ---

  • Algorithms





  ---

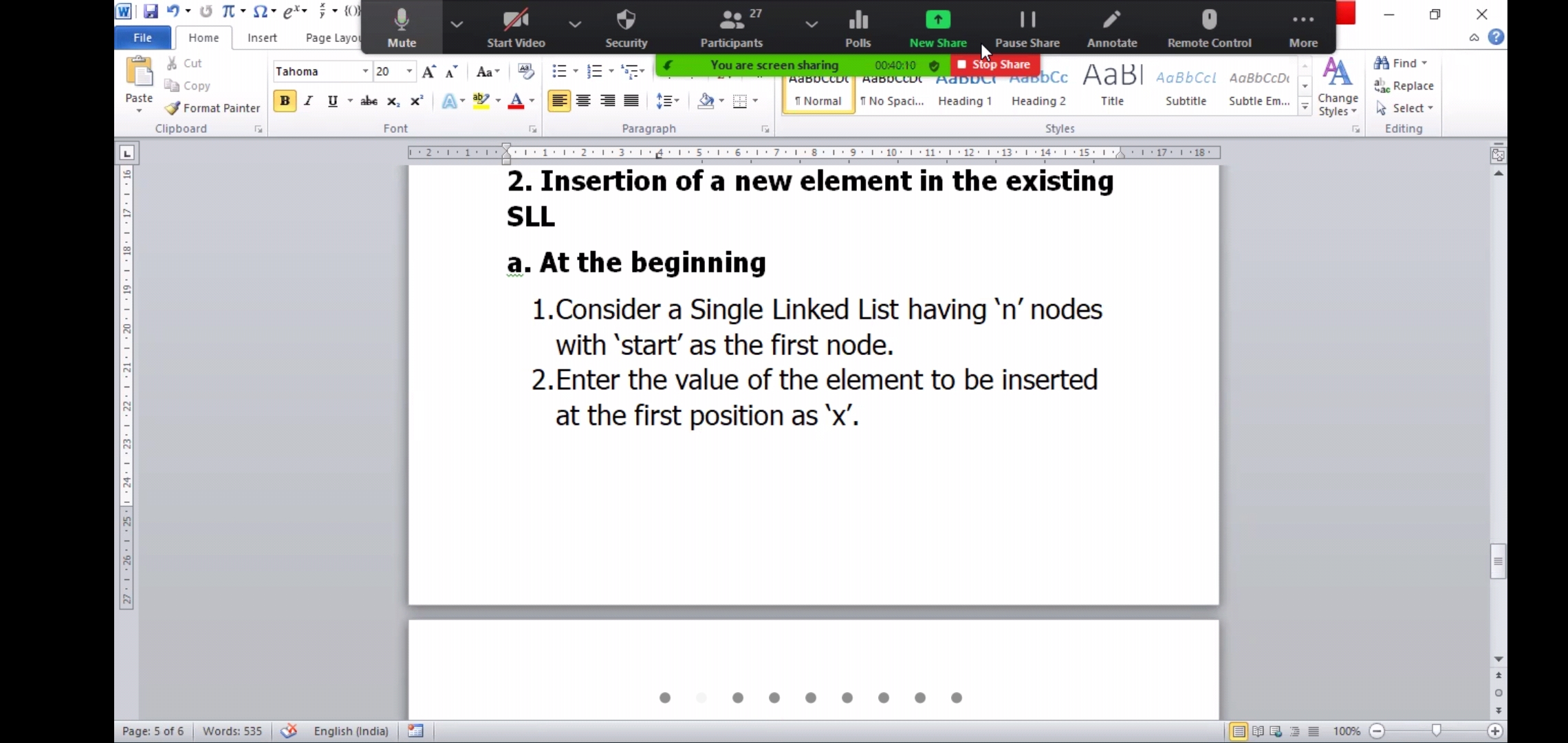

  • Insertion of new element





  ---

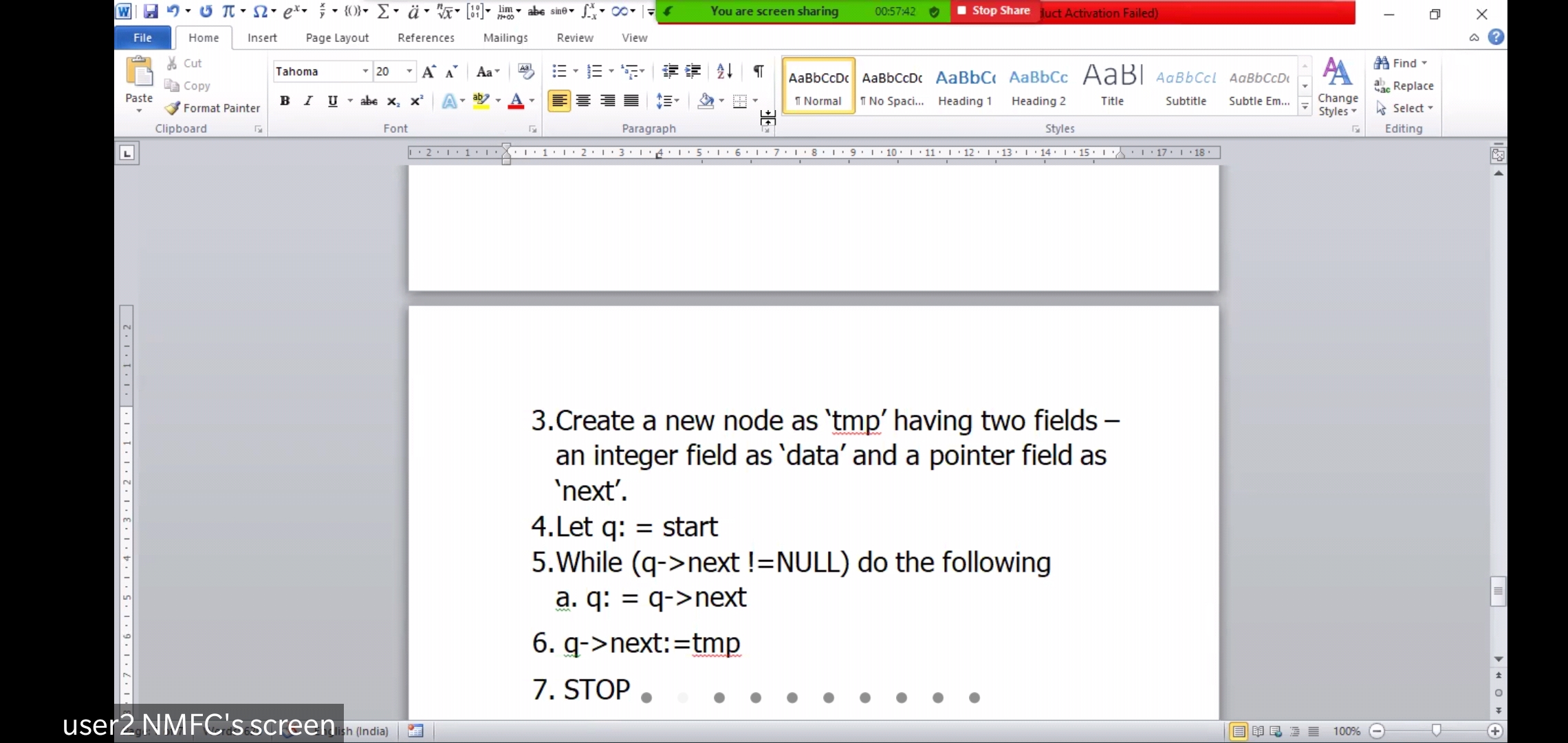

  • Insertion at the end





  ---

  • Insertion at specified position





  ---

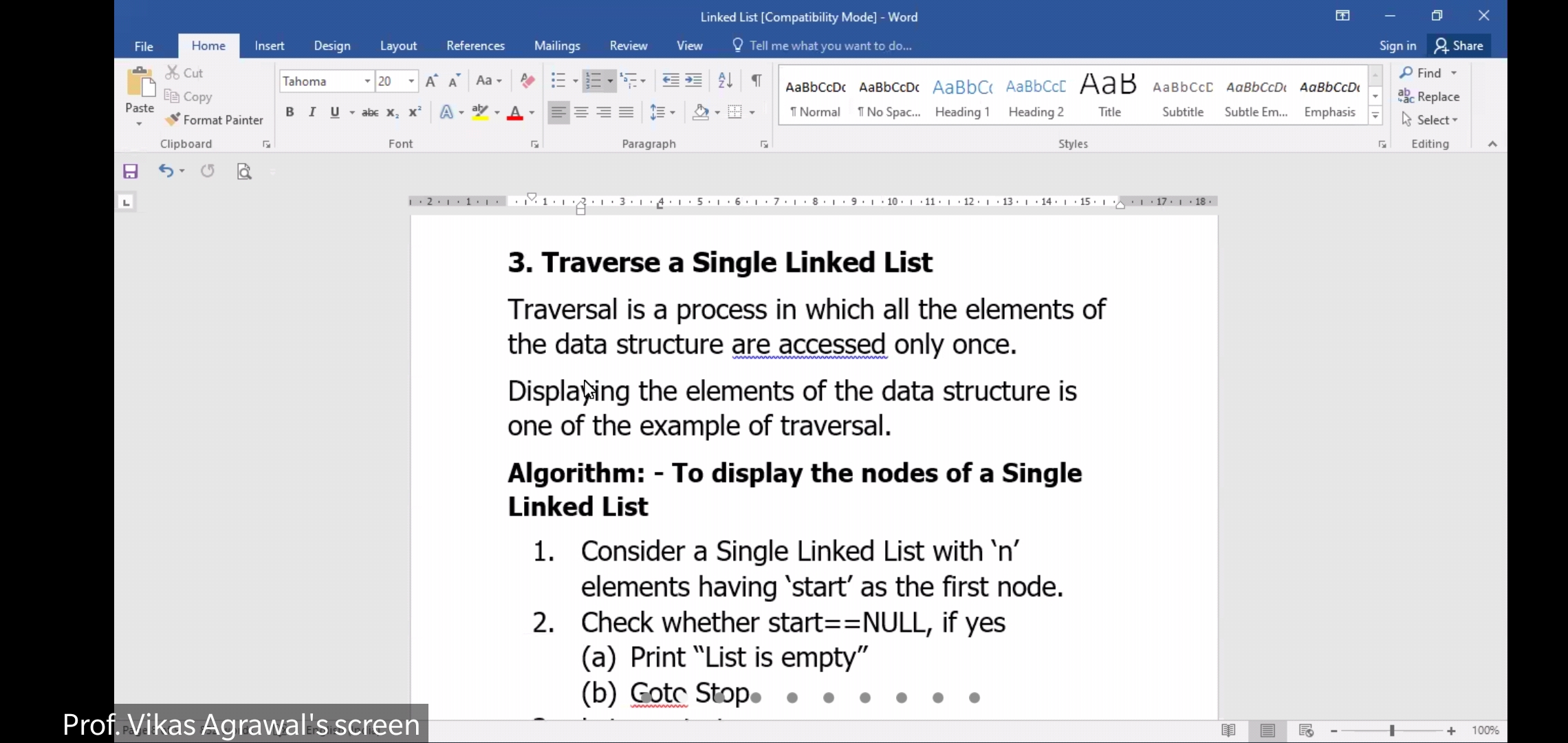

  • Traverse





  ---

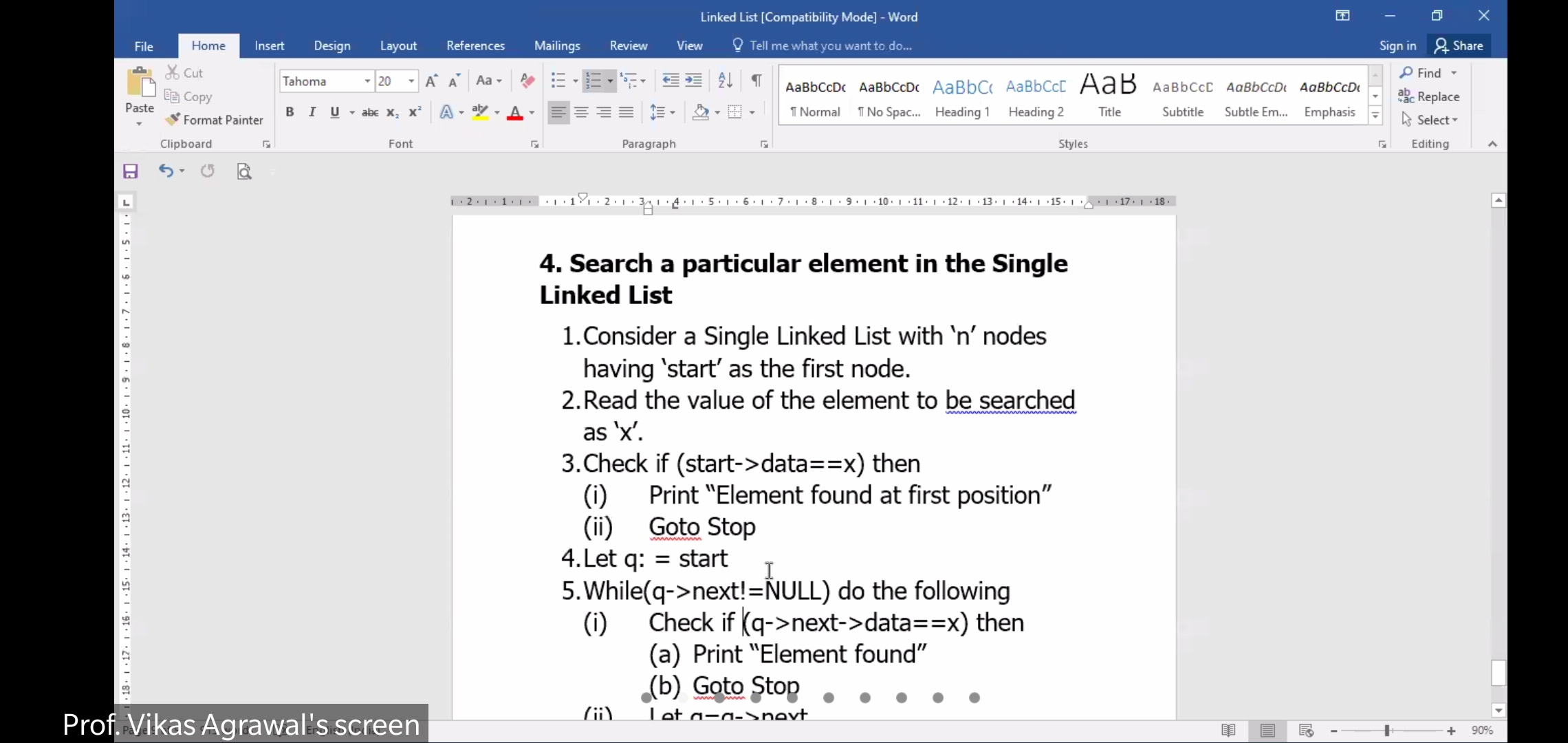

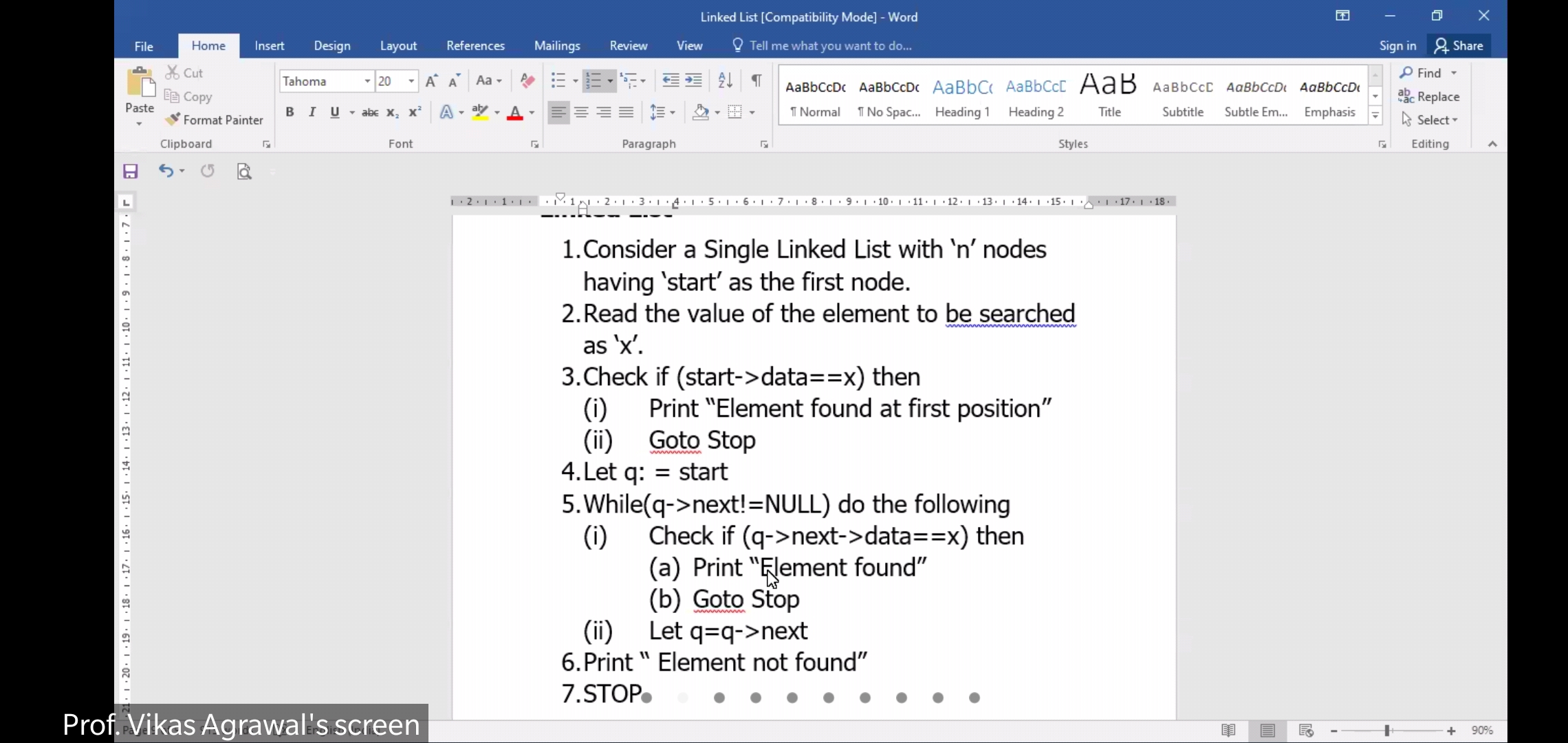

  • Searching





  ---

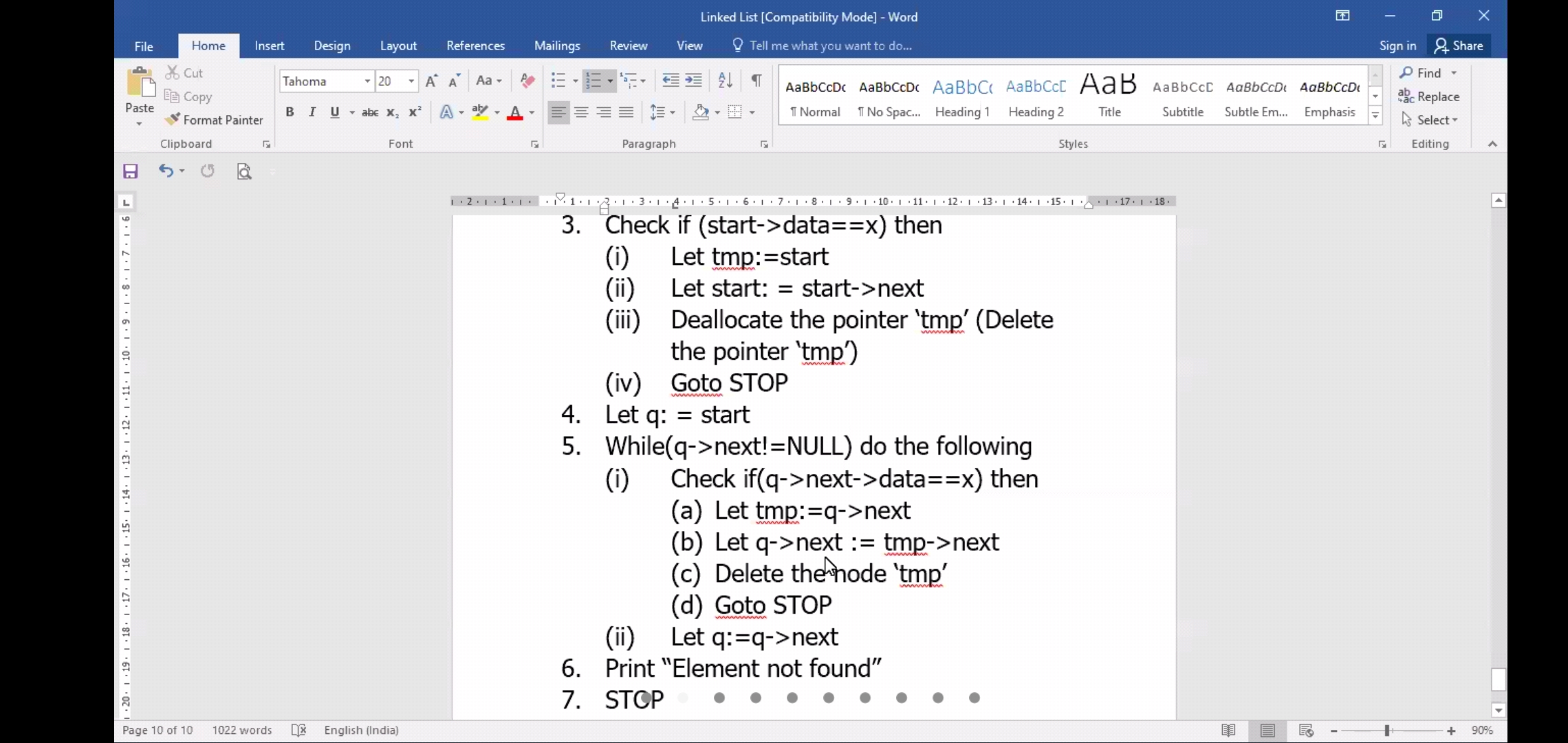

  • Delete perticular an element







  ---

  • Count the num of elements

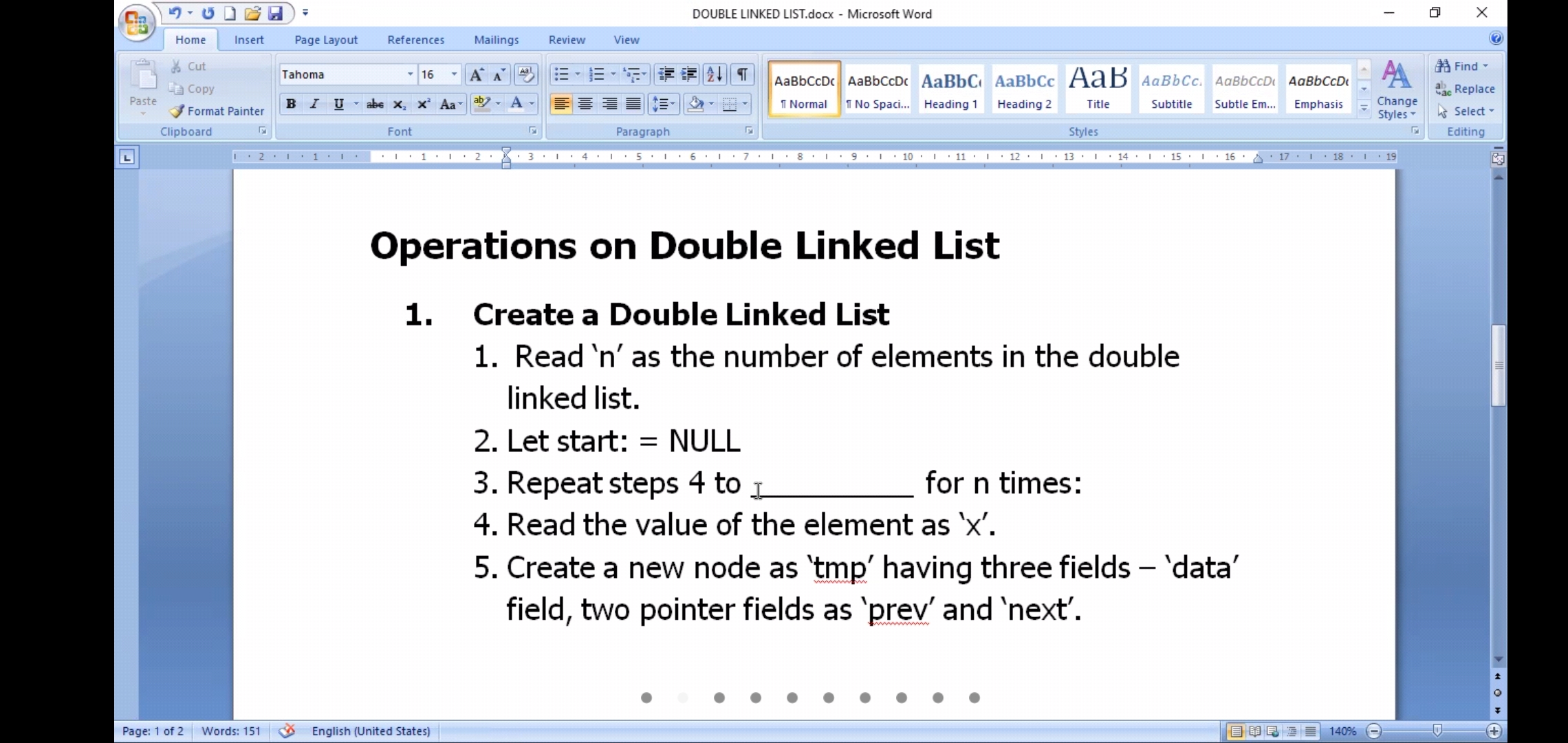

• Doubly List

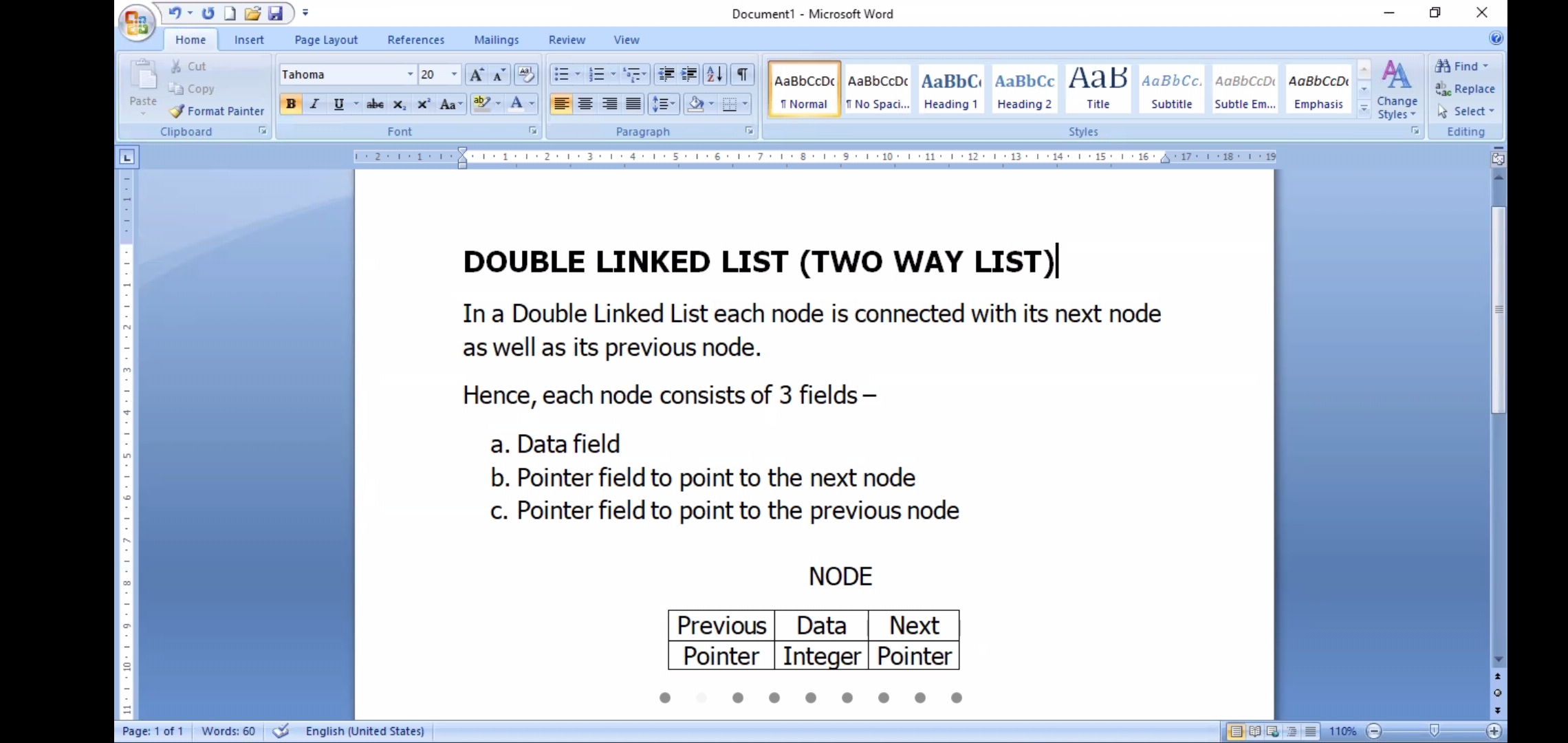

  In a DLL, each node points towards 2 nodes, one on the forward side and other on the reverse side.

  The only element in reference will be the first element. DLL traverse in both directions.

  ---

  Links :

  • Algorithms

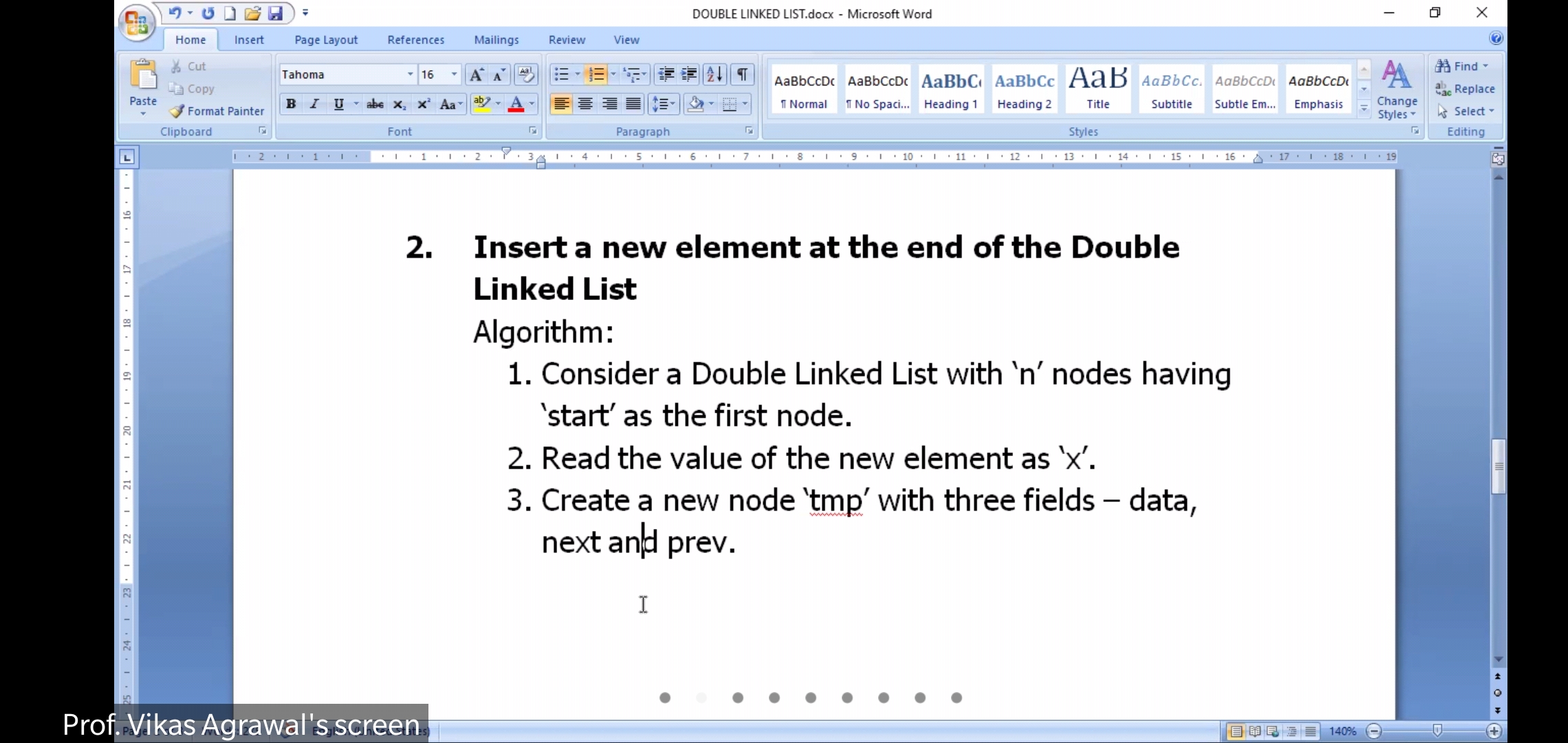

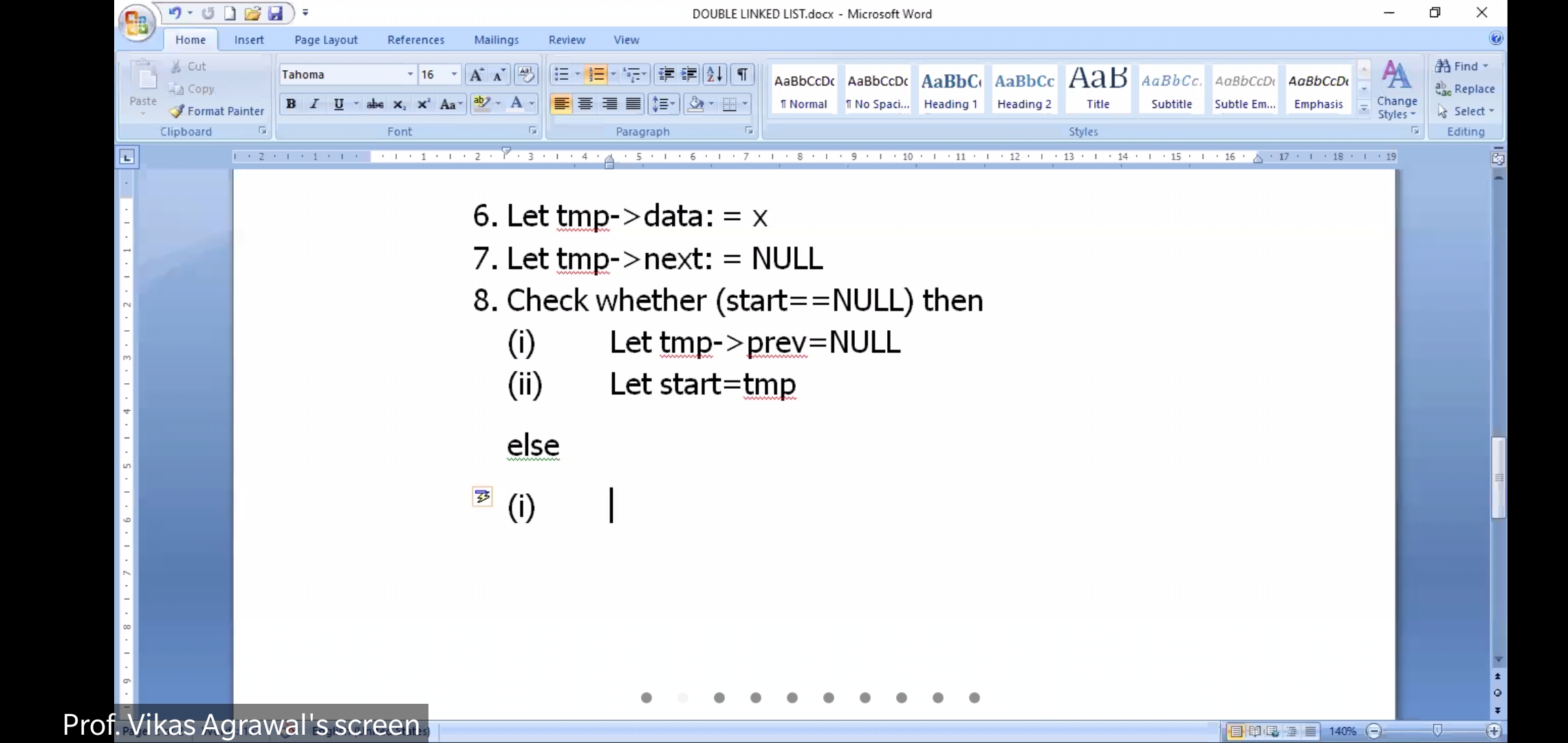

  • Inserting a new element at the end

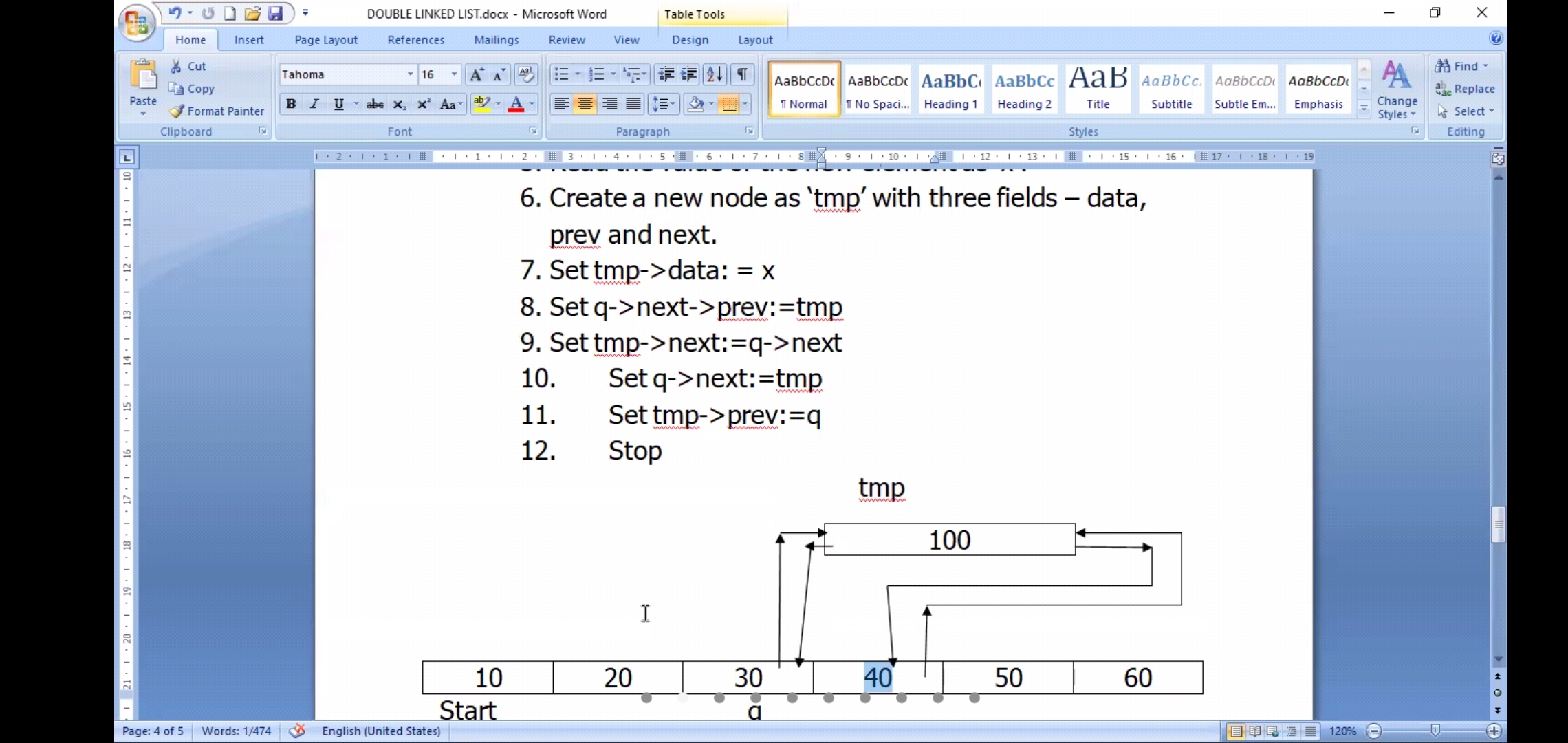

  • Inserting at specified position

  • Traverse



  ---

  • Algorithms







  ---

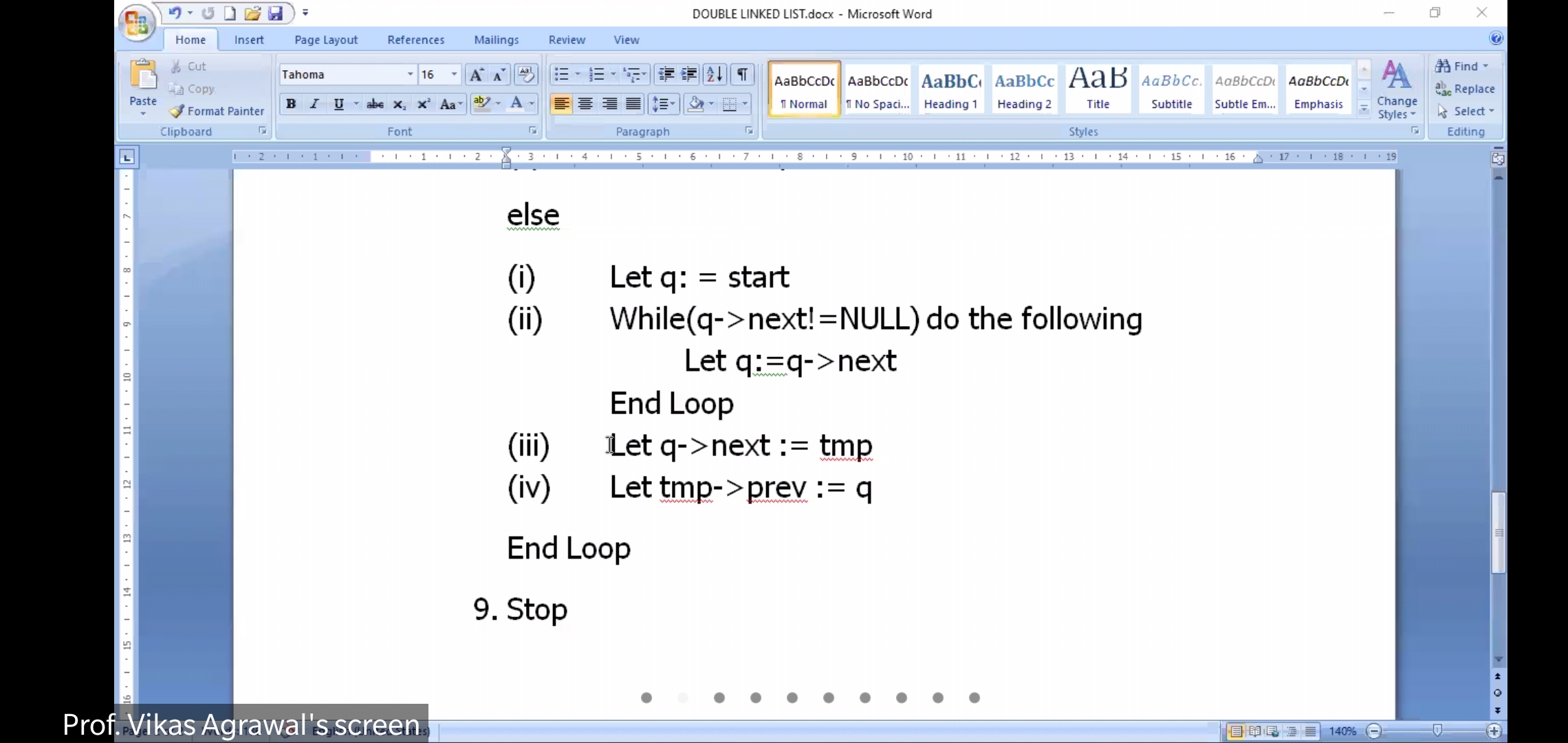

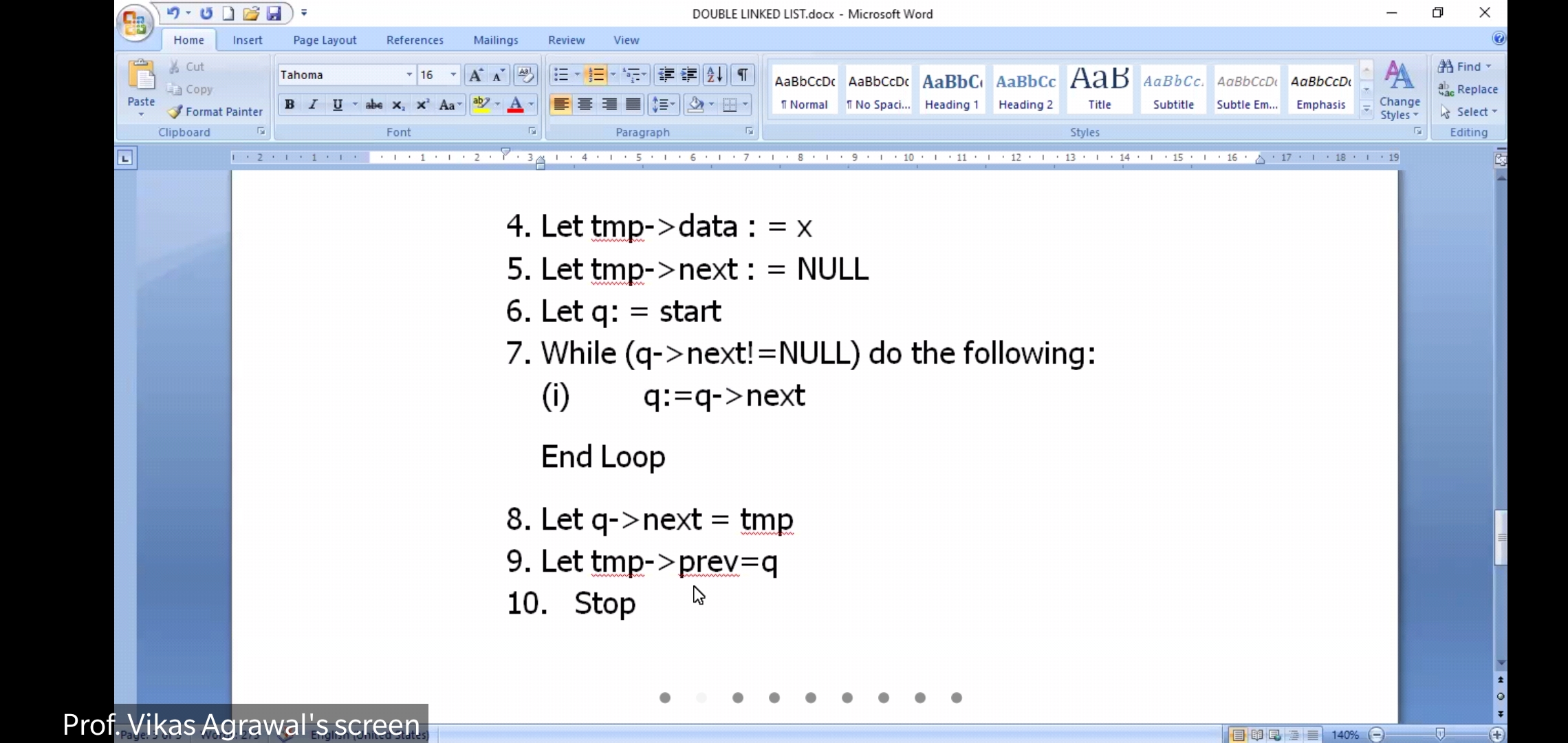

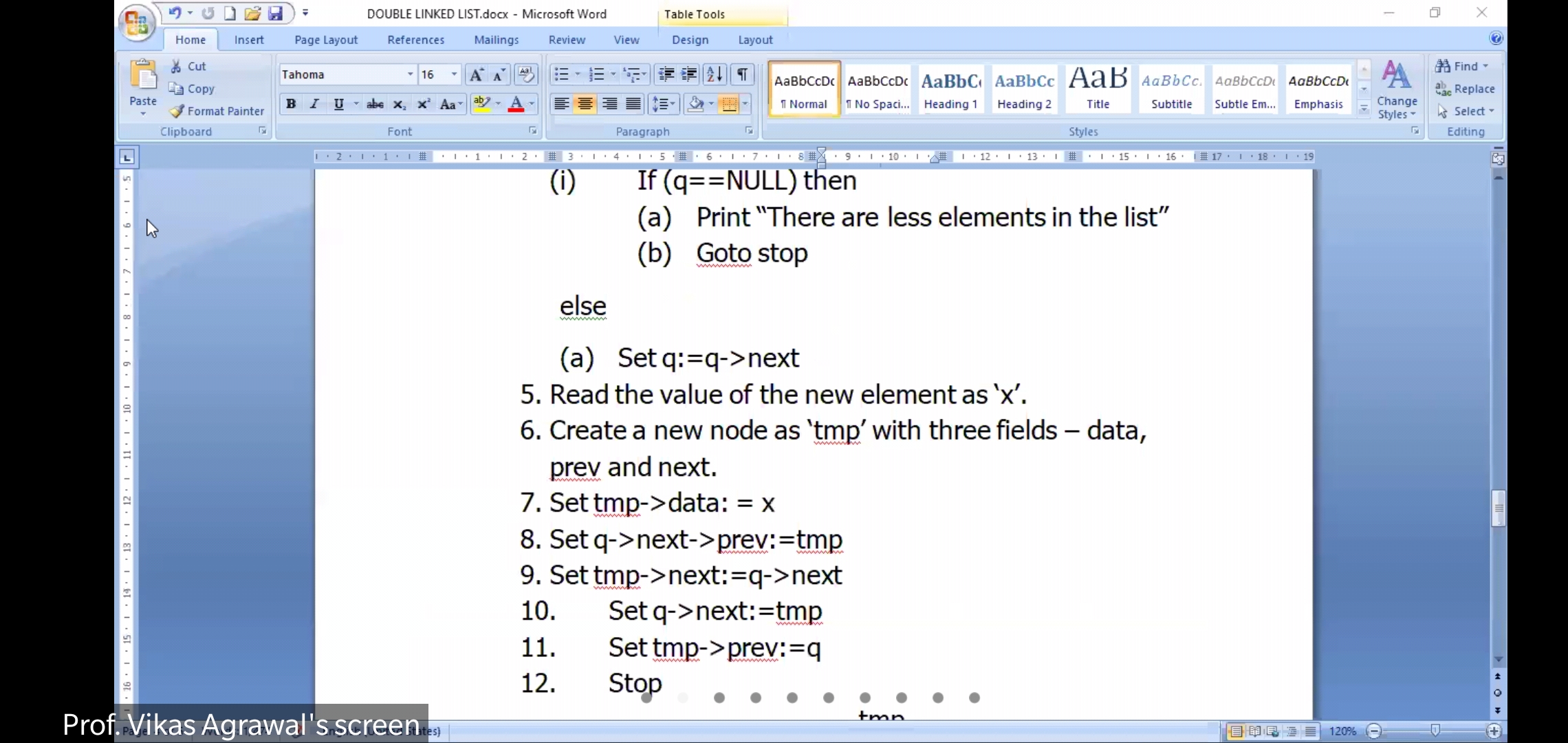

  • Insertion at the end





  ---

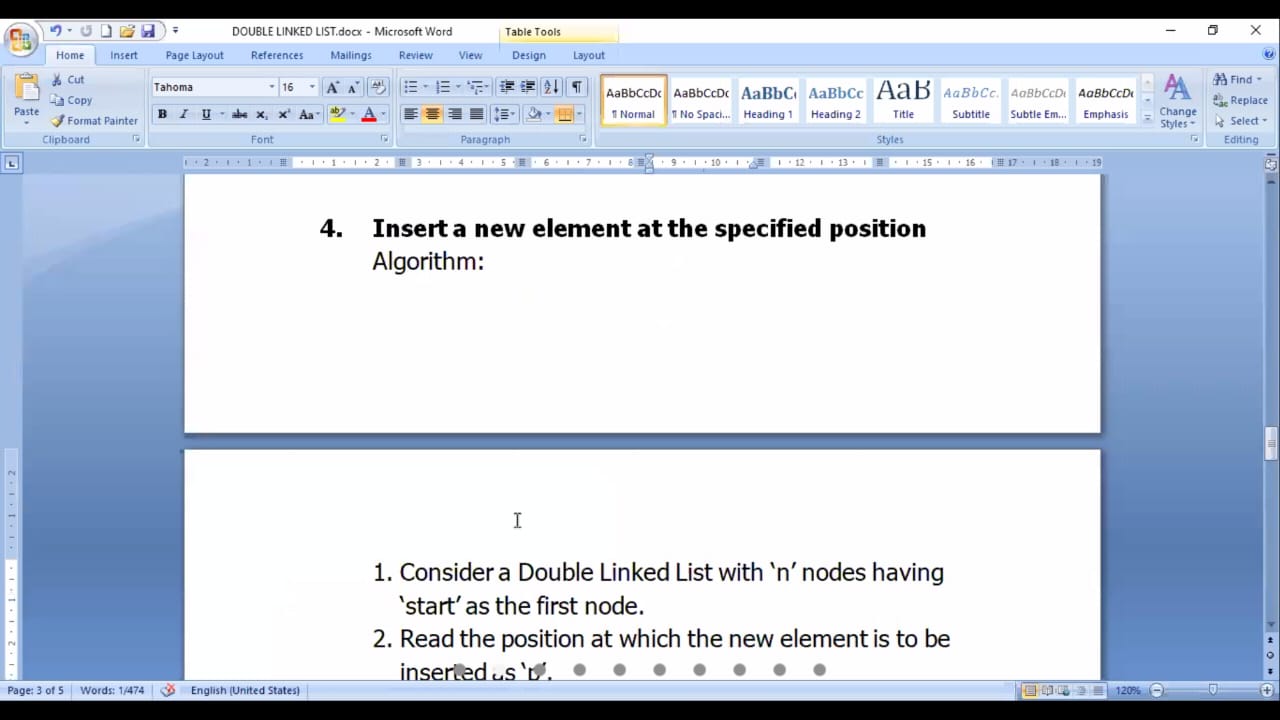

  • Insertion at specified position







  ---

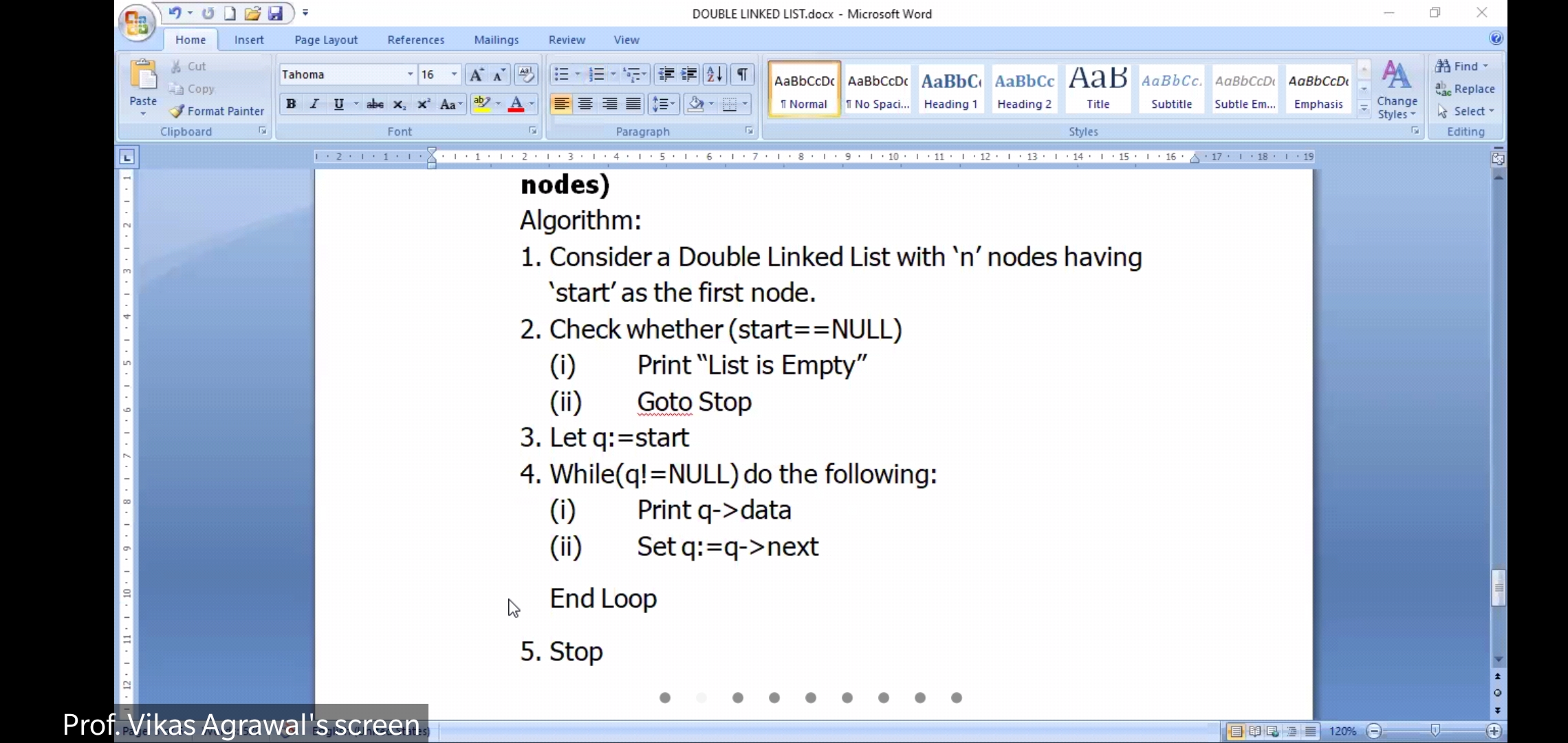

  • Traverse through double link list



  ---

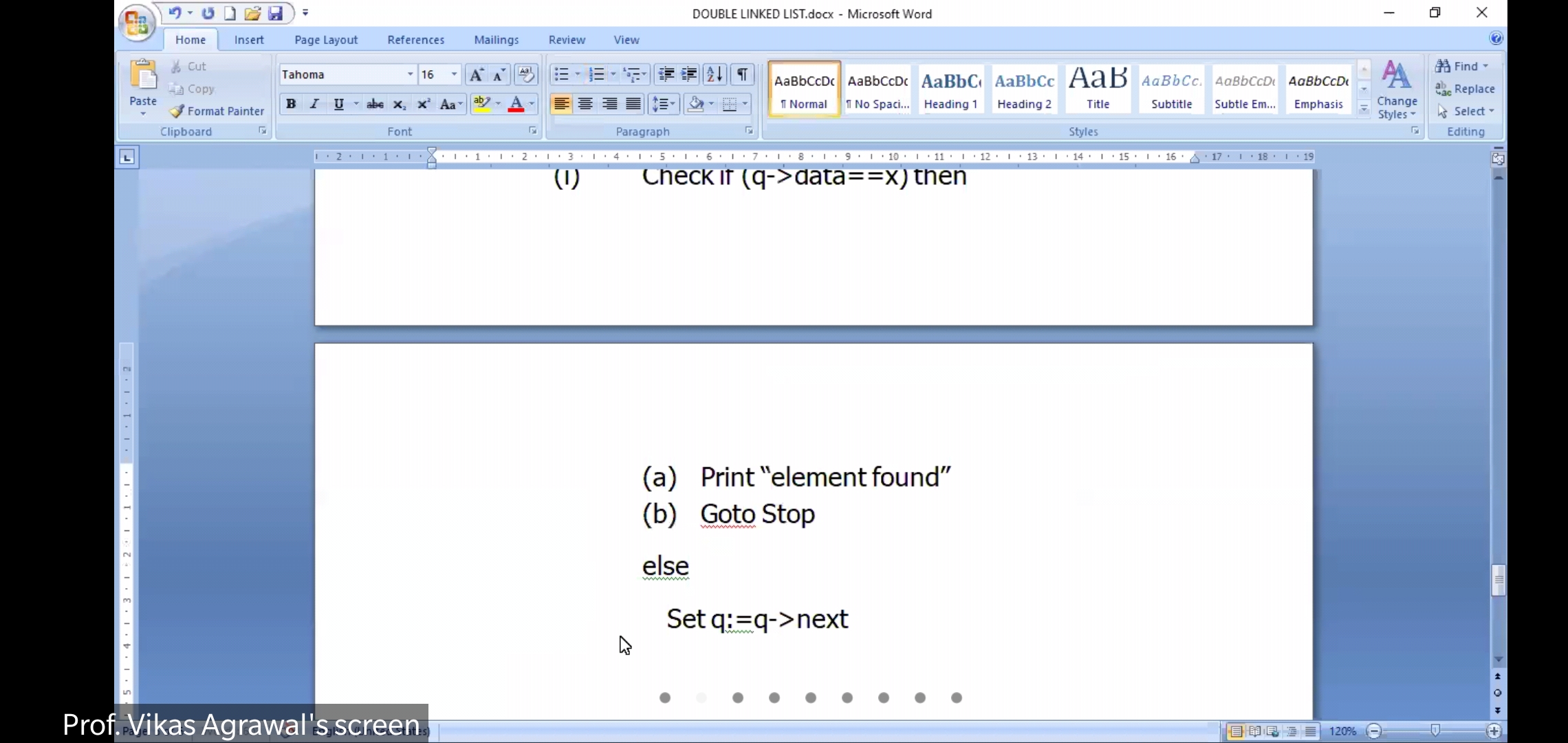

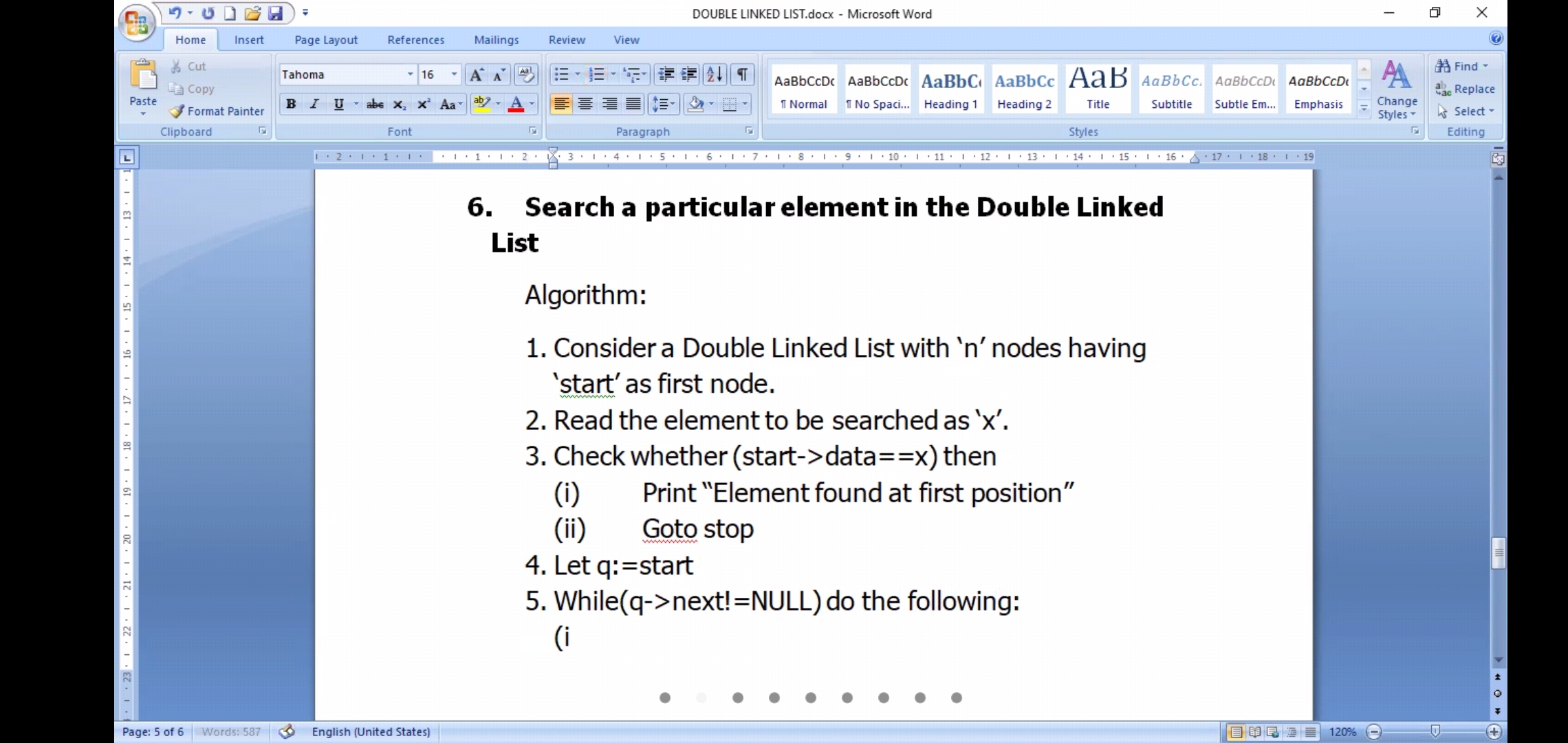

  • Searching







  ---

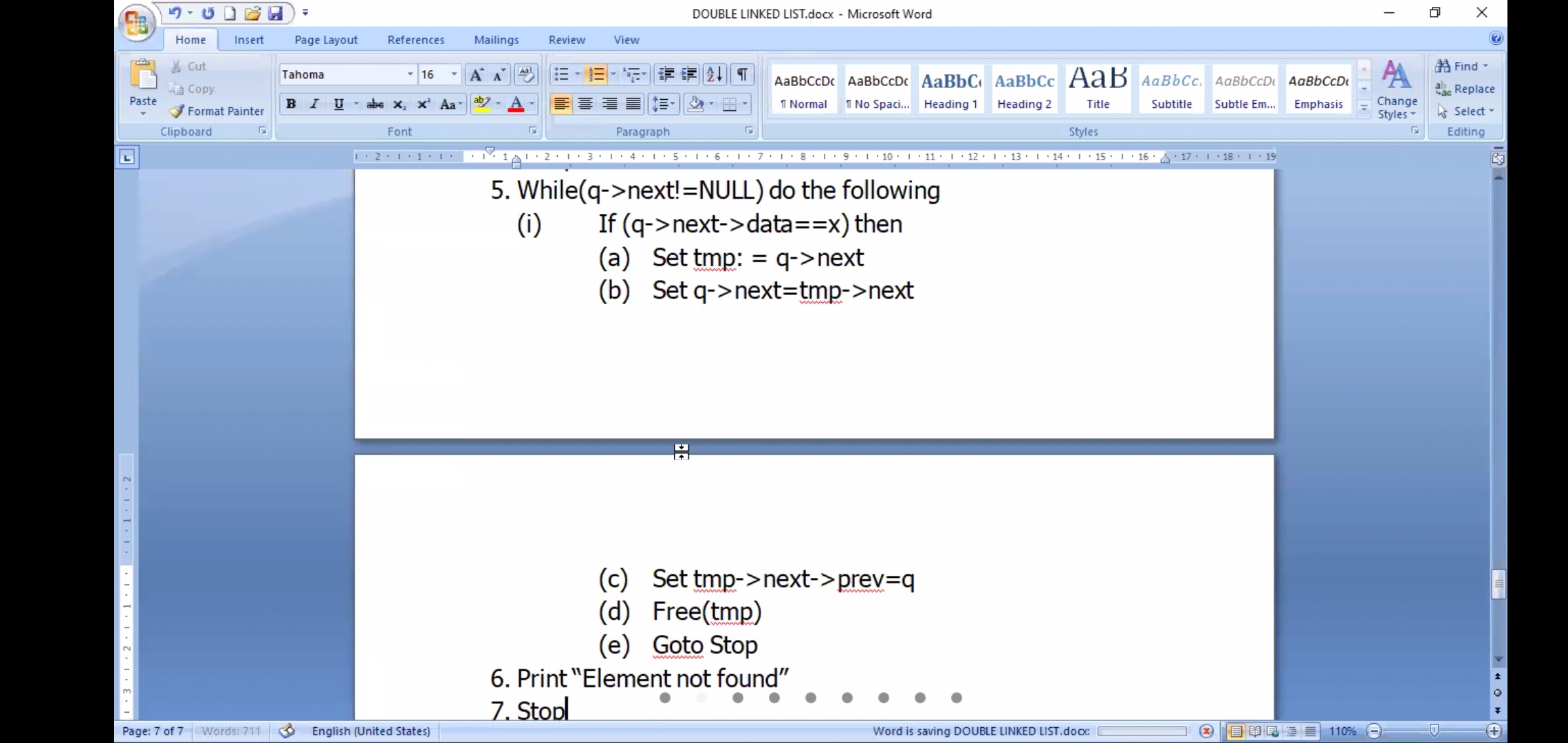

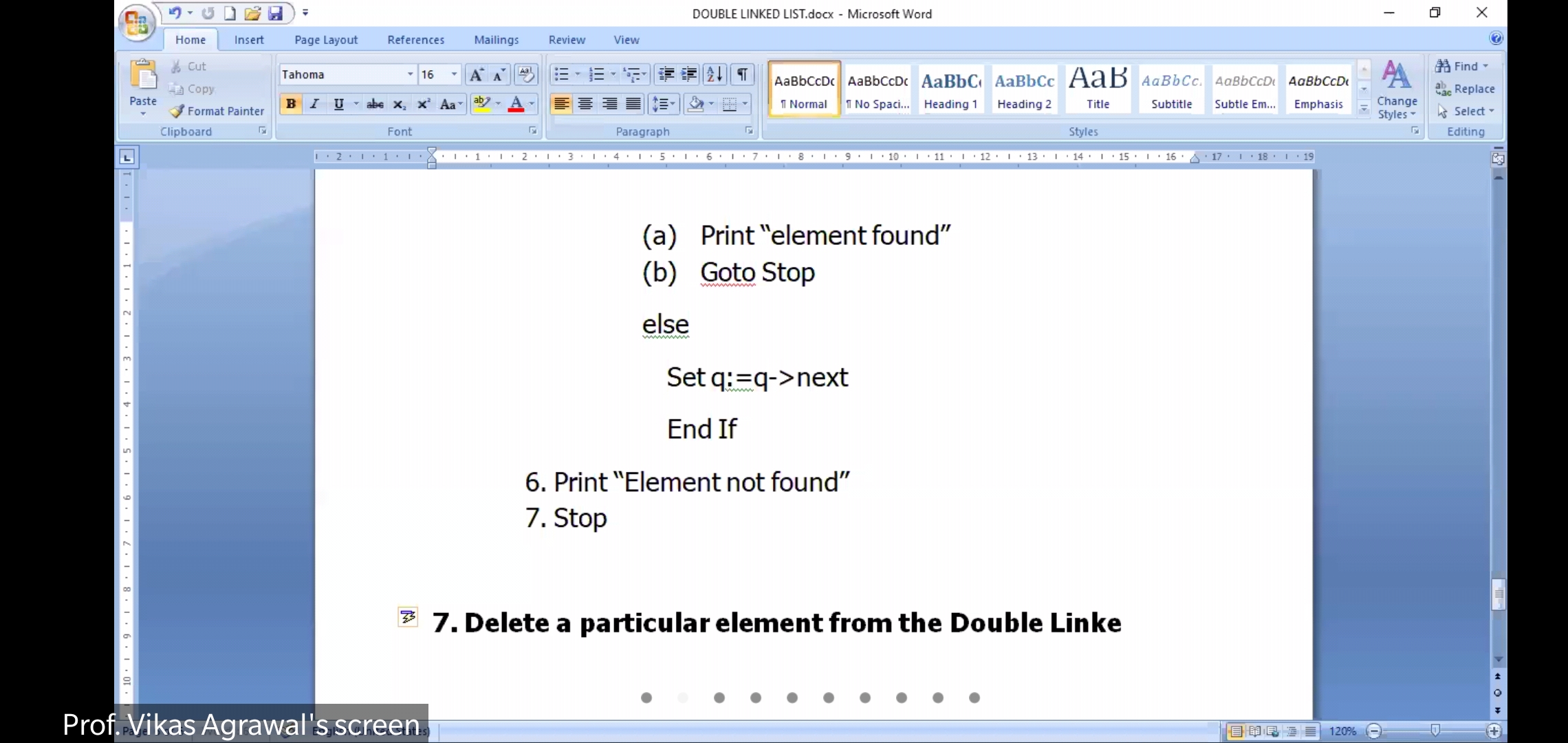

  • Delete a perticular element





• Circular List

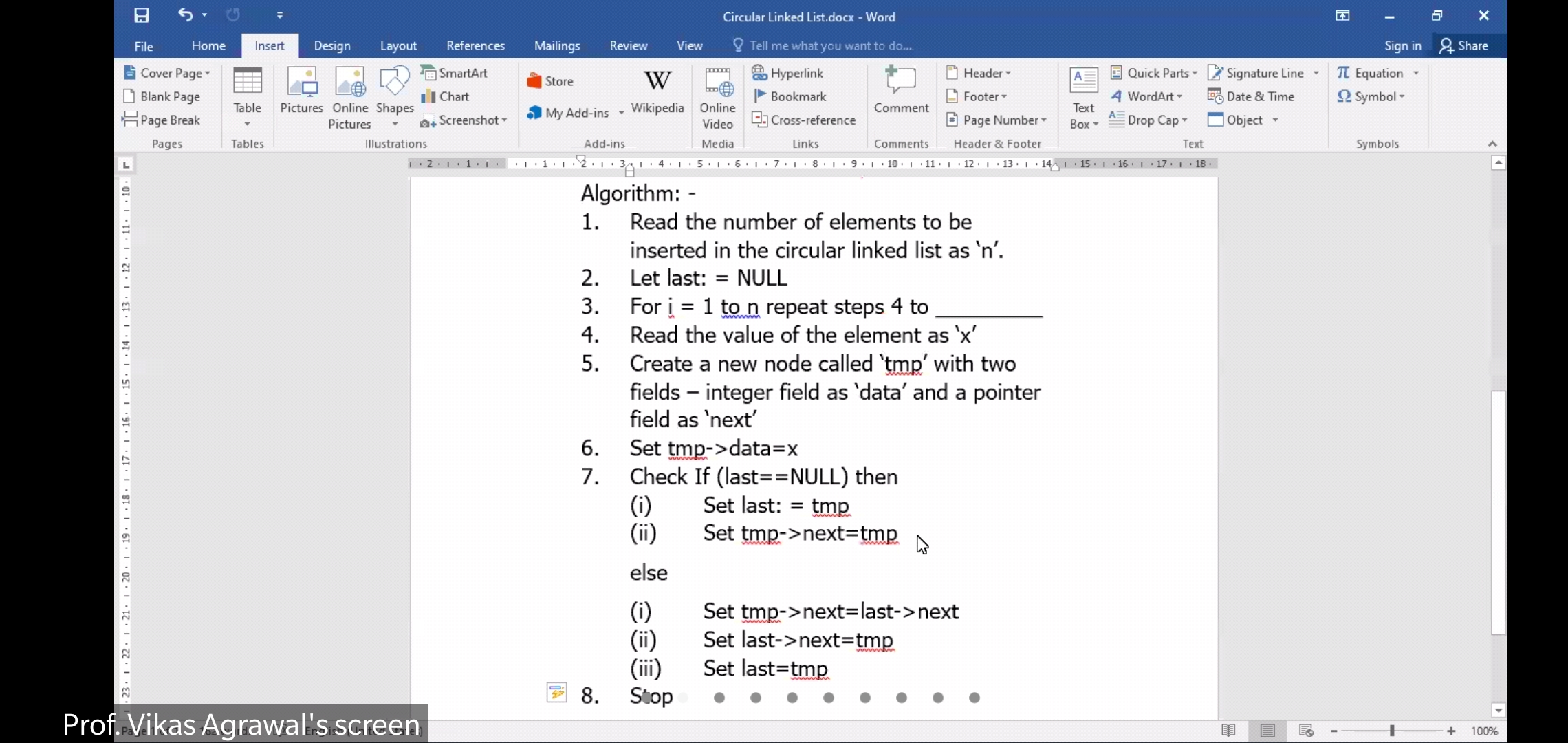

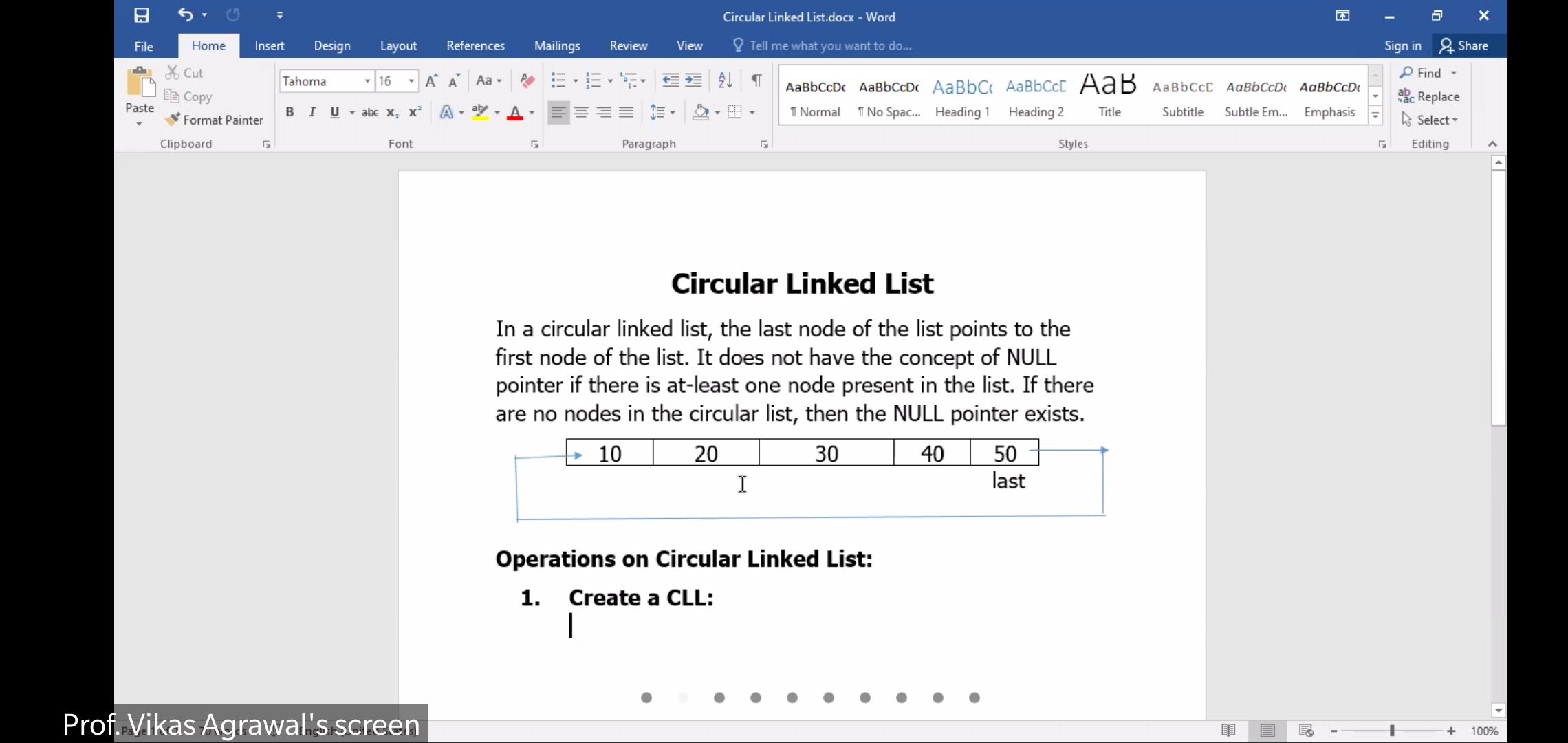

  The CLL is similar to SLL, i.e each element points to its next element, while the last element points to the first element. In a CLL, if atleast 1 element is present, then there is no concept of NULL pointer.

  NULL pointer comes into existence only if there are zero elements in the CLL. In a CLL, the last element is the reference pointer for the programmer.

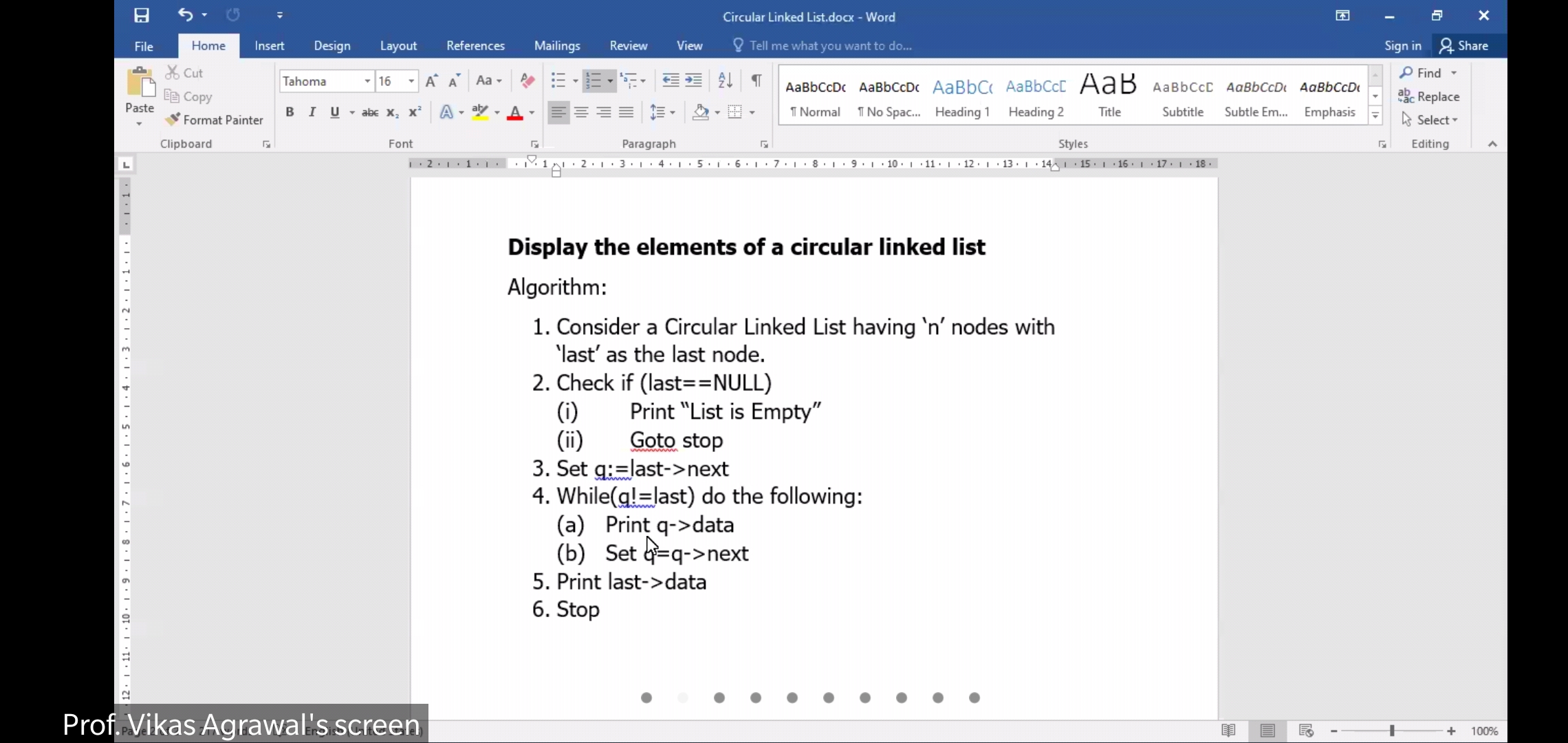

  • To display the element
